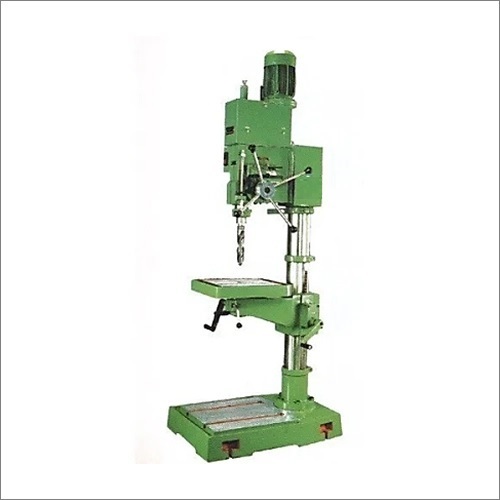

Drilling Cum Tapping Machine
35000 INR/Piece
Product Details:
- Condition New
- Product Type Drilling Cum Tapping Machine
- Material Metal
- Automatic Grade Automatic
- Color Green
- Click to View more
X
Drilling Cum Tapping Machine Price And Quantity
- 35000 INR/Piece
- 1 Piece
Drilling Cum Tapping Machine Product Specifications
- Metal
- Green
- Drilling Cum Tapping Machine
- Automatic
- New
Product Description
Specification
| Capacity | 20 MM | 25 MM | 32 MM | 40 MM |
| Drilling Capacity | 20 mm | 25 mm | 32 mm | 40 mm |
| Tapping Capacity | 13 mm | 19 mm | 25 mm | 31 mm |
| Spindle Center to Column | 8" | 10" | 10" | 12" |
| Spindle Travel | 165 mm | 180 mm | 180 mm | 247 mm |
| Size Of Table Round | 10" | 14" | 15.5" | 16" |
| Max. Distance Spindle To Table | 650 mm | 730 mm | 810 mm | 655 mm |
| Max. Distance Spindle To Base | 850 mm | 1045 mm | 1120 mm | 1120 mm |
| Column Dia. | 78 mm | 90 mm | 108 mm | 120 mm |
| Machine Base | 20" x 13" | 23" x 16" | 26" x 18" | 28" x 18" |
| Pillar Height | 4' | 5' | 5.5' | 5.5' |
| Spindle Nose Bore | MT-3 | MT-4 | MT-4 | MT-4 |
| Motor Speed (R.P.M) | 1440 | 1440 | 1440 | 1440 |
| Motor (H.P) | 1 | 1 | 2 | 2 |
| Weight Approx. | 110 Kg. | 185 Kg. | 275 Kg. | 320 Kg. |
