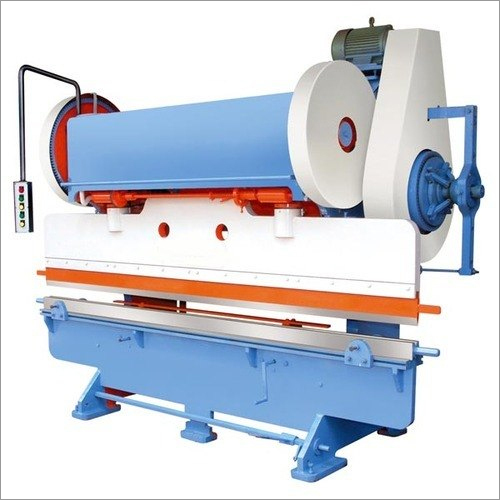

Hydraulic Press Brake Machine

650000 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Hydraulic Press Brake Machine Price And Quantity

Minimum Order Quantity 1 , , Unit
Price 650000 INR/Unit

Product Description

Specification

Model	Bending Capacity In M.S.	Ton	Clear Distance Between Housing	Stroke Of Ram	Open Height	Closed Height	Depth Of Throat	Motor	Overall Dimension In MM
	Length x Thickness (mm)			(Per Min.)			MM	HP	LWH
RMTH-1	2030 x 2	30	1500	100	280	180	240	3	220011501900
RMTH-2	2030 x 2.5	40	1500	100	280	180	240	3	220011501900
RMTH-3	2540 x 2	40	2000	100	280	180	240	3	270011501900
RMTH-4	3125 x 1.6	40	2500	100	280	180	240	3	330011502000
RMTH-5	2030 x 3	50	1500	100	280	180	240	5	220011501900
RMTH-6	1525 x 4	50	1050	100	280	180	240	5	170012002000
RMTH-7	2540 x 3	65	2000	150	350	200	240	5	270012002000
RMTH-8	2030 x 4	65	1500	150	350	200	300	5	220012002000
RMTH-9	3125 x 2.5	65	2500	150	350	200	300	5	330015502300
RMTH-10	2540 x 4	80	2000	150	350	200	300	7.5	270015502300
RMTH-11	3125 x 3	80	2500	150	350	200	300	7.5	330015502300
RMTH-12	3125 x 4	100	2500	150	350	200	300	10	330015502300
RMTH-13	2540 x 5	100	2000	150	360	210	300	10	270015502300
RMTH-14	2540 x 6	120	2000	150	360	210	300	10	275016502700
RMTH-15	3125 x 5	125	2500	150	360	210	300	10	330016502500
RMTH-16	3125 x 6	150	2500	150	360	210	300	15	330018002700
RMTH-17	2540 x 8	160	2000	150	365	215	300	15	275016502700
RMTH-18	5000 x 4	160	4100	200	415	215	300	15	530018503000
RMTH-19	2540 x 10	200	2000	200	415	215	350	20	285019002600
RMTH-20	3125 x 8	200	2500	200	415	215	350	20	335020502750
RMTH-21	4200 x 6	200	3000	200	415	215	350	20	460021003100
RMTH-22	6300 x 4	200	5300	200	415	215	350	20	660022003500
RMTH-23	2540 x 13	250	2000	200	415	215	350	25	290021002800
RMTH-24	3125 x 10	250	2500	200	415	215	350	25	340021002800
RMTH-25	4000 x 8	250	3000	200	415	215	350	25	440020002900
RMTH-26	5000 x 6	250	4100	200	415	215	350	25	540022003200
RMTH-27	2540 x 16	325	2000	200	500	300	350	30	290022003000
RMTH-28	3125 x 13	325	2500	200	415	215	350	30	340022003000
RMTH-29	4000 x 10	325	3000	200	415	215	350	30	4400220030000
RMTH-30	5000 x 8	325	3500	250	500	250	350	30	540022003200
RMTH-31	6300 x 6	325	5300	250	500	250	350	30	640023003400
RMTH-32	2540 x 20	400	2000	250	500	250	350	40	290022003200
RMTH-33	4000 x 13	400	3000	250	500	250	350	40	4400220030000
RMTH-34	5000 x 10	400	4100	250	500	250	350	40	5400230035000
RMTH-35	6300 x 8	400	5300	250	500	250	350	40	640023503600
