Tapping Machine

21000.00 - 200000.00 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Tapping Machine Price And Quantity

Price Range 21000.00 - 200000.00 INR/Piece
Minimum Order Quantity 1 , , Piece

Tapping Machine Trade Information

Supply Ability 1 , , Piece Per Week
Delivery Time 1-2 Week

Product Description

Specification

Specification Of Machine	mm	6 mm	12mm	20 mm
Drilling Capacity	mm	3	8	12
Spindle Travel / Table Travel (6 mm)	mm	60	75	100
Distance Spindle To Column	mm	80	140	237
Distance Between Chuck & Base	mm	190	540	670
Distance Between Chuck & Work Table	mm	Movable	380	520
Size Of Base Plate L x B	mm	370x250	480x350	550x410
Size Of Work Table L x B	mm	150x150	190x220	260x260
Dia. Of Column	mm	47	74	74
V Belt (Inside)	mm	n/a	A-71	B-72
V Belt (Outside)	mm	A-36	A-25	B-32
No. Of Spindle Speeds	Nos.	3	3	3
Forwards Speed Range	n/a	480/750/1400	350/620/1100	220/320/460
Reverse Speed Range	n/a	480/750/1400	420/745/1315	260/380/545
Motor (Single Phase or Three Phase)	H.P/1440 RPM	0.5	1	1
Overall Height	mm	650	1245	1400
Overall Width	mm	270	370	400
Overall Front To Back	mm	540	600	700
Weight Approx.	Kg.	50	120	150

Other Products in 'Drilling And Tapping Machine' category

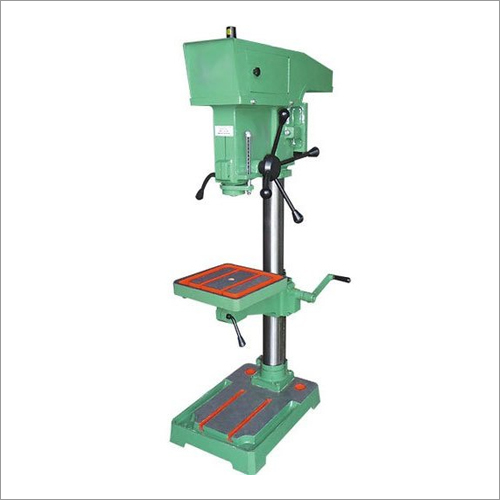

Pillar Drill Machine Price : 25500 INR/Unit Minimum Order Quantity : 1 Material : Metal Automatic Grade : Automatic Product Type : Pillar Drill Machine Condition : New Color : Green

Send Inquiry

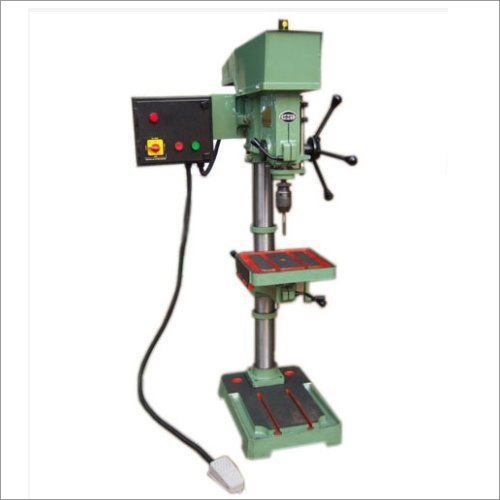

Drilling Cum Tapping Machine Price : 35000 INR/Piece Minimum Order Quantity : 1 Material : Metal Automatic Grade : Automatic Product Type : Drilling Cum Tapping Machine Condition : New Color : Green
